Products Measuring Systems Raw Material Inspection

Sysmetric is an official agent for inspect technologies, a leading manufacturer of inspection and measurement systems for plastic sheet, film, and pellet producers.

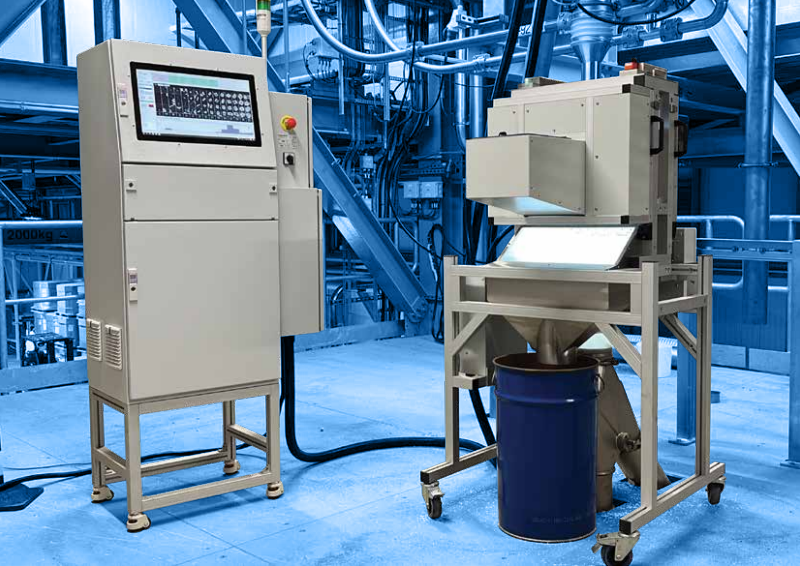

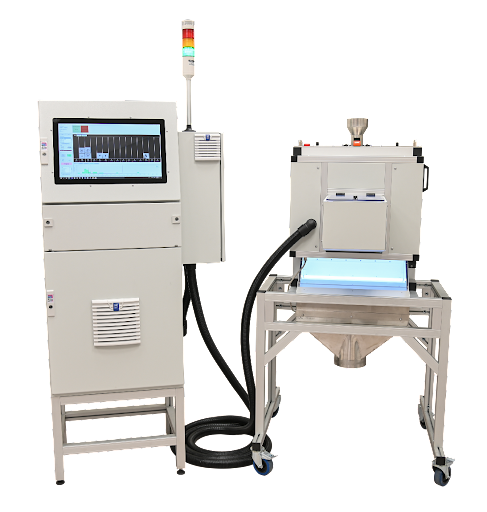

inspec.tech offers an innovative solution for the in-line inspection of plastic pellets using the latest machine vision technologies and specialized lighting solutions.

The plastic pellet inspection system’s simple mechanical design is engineered for easy integration into existing production lines, providing a comprehensive inspection solution for the entire production stream, throughput optimization, and quality assurance.

The basic system supports throughput of 1,000 kg/hr (2,200 lbs/hr).

Systems up to 9,000 kg/h (19,800 lbs/hr) are available as standard.

The system is delivered fully assembled and ready to use.

Benefits

  • Decrease in-house waste and your customer’s waste caused by disqualified pellets
  • Continuous process monitoring and optimization
  • Set objective standards for consistently higher pellet quality
  • Safely extend preventive maintenance intervals
  • Reduce customer complaints and returns

Features

Detection Capabilities

  • Impurities in the material
  • Median pellet size variation and pellet size distribution
  • “Tails” caused by improper cutting
  • Angel hair, fines, and streamers caused by the transfer system
  • Color variations (color camera system only)
  • Cross-contamination

Unique Design

  •  Simple mechanical structure
  • No motors, belts, or vibrators
  • Easy cleaning and maintenance for fast product changeovers
  • Easy recipe development and editing
  • User-friendly yet sophisticated Windows-based interface

Specifications

Line Capacity 1,000 kg/hr / 2,200 lbs/hr with a single camera
9,000 kg/hr / 19,800 lbs/hr with multiple cameras
Inspection Resolution 50-150 microns/pixel / 1.9-5.9 mil/pixel
Illumination Systems Transmitted and reflected VIS/UV
Sorting Air blow nozzles unit
Optional diverter valve
