Gravimetric Blending & Line Control

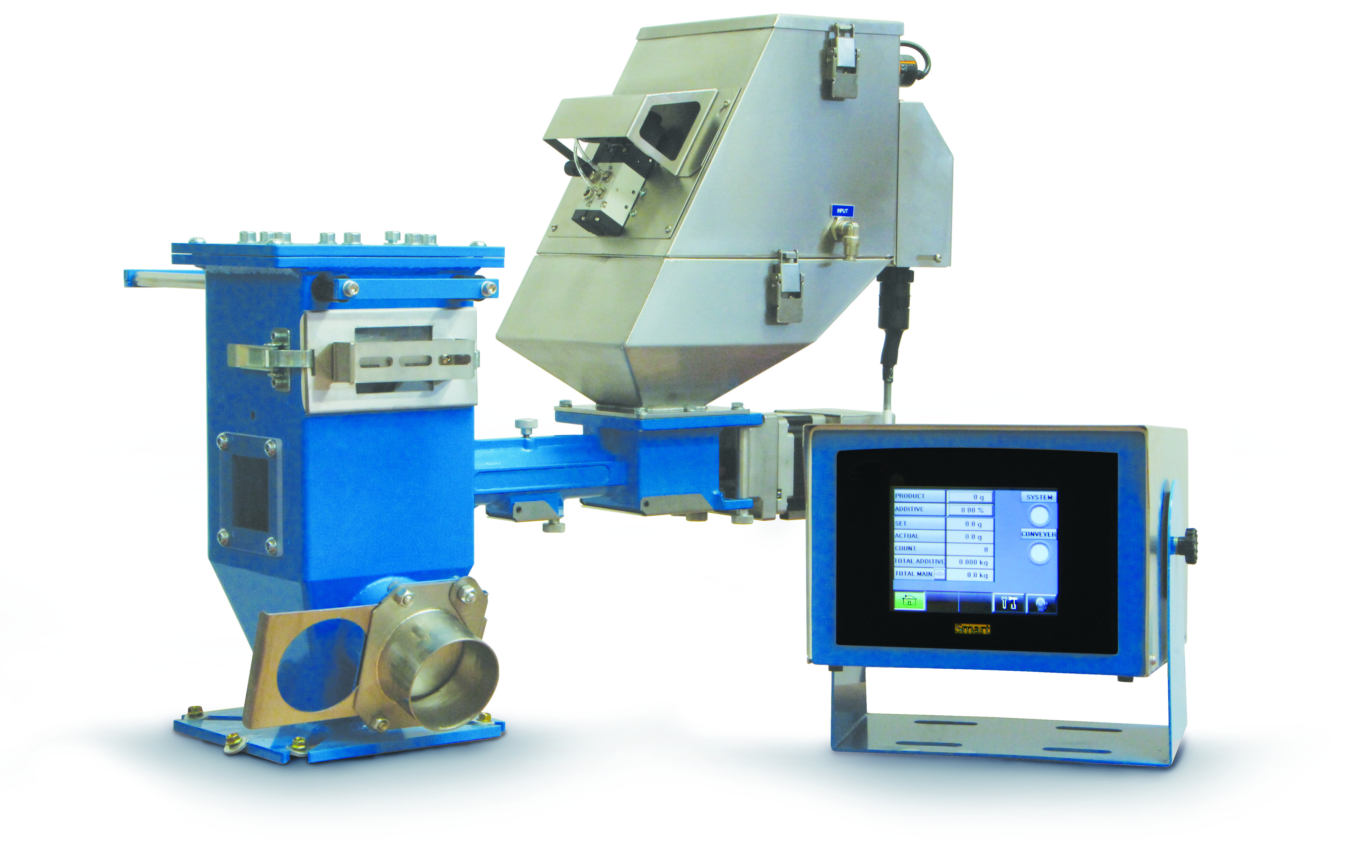

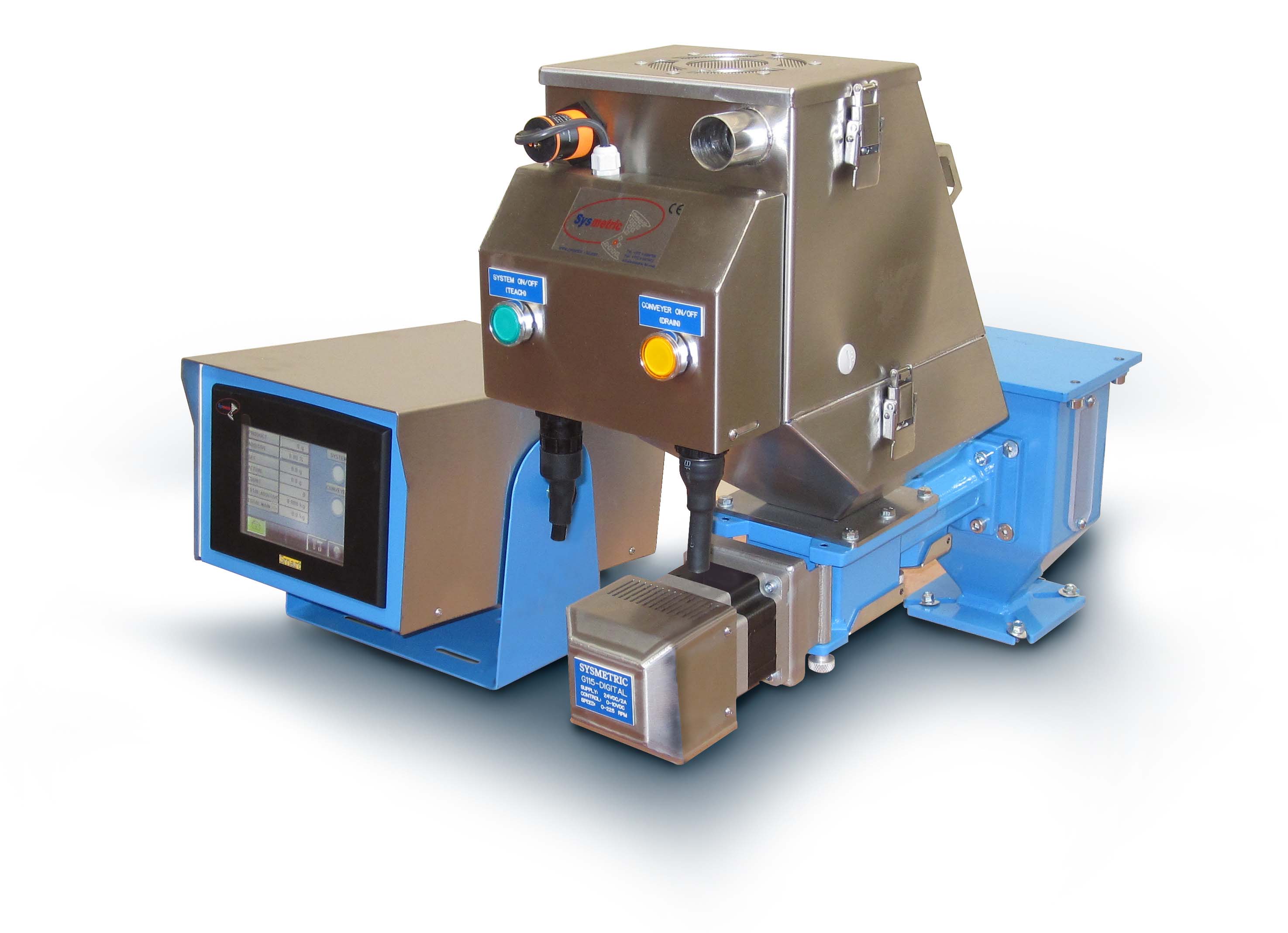

GraviColor™
Gravimetric coloring and additives screw doser provides exceptional linear feeding rate and a very wide output range in one setup. Designed for extrusion and injection molding applications, this system features a built-in venturi loader, loss in weight technology and is suitable for granules. It is easy to operate and clean and works in combination with the Sysmetric CD Series dosers.

Benefits

  • For injection molding and extrusion machines
  • For granules
  • Fast and fully automatic material adaptation
  • Wide dynamic feeding range under one setup
  • Exceptional linear feeding rate

Features

  • Advanced control algorithm (C.P.R).
  • Loss in weight technology
  • Integrated air amplifier material loader
  • Dedicated SMART PLC control
  • Color touch screen
  • Multi-language interface
  • Galvanic isolated I/O for superior protection
  • Isolated 10/100 Ethernet port
  • Integrated machine data acquisition
  • Optional remote PC control compatibility with Vision software

Specifications

  • Capacity range with granules – Extrusion: 0.07 kg/h – 18 kg/h
  • Capacity range with granules – Injection: 0.02 gr/sec – 5 gr/sec
