Sysmetric manufactures a wide range of hopper loaders for central vacuum systems

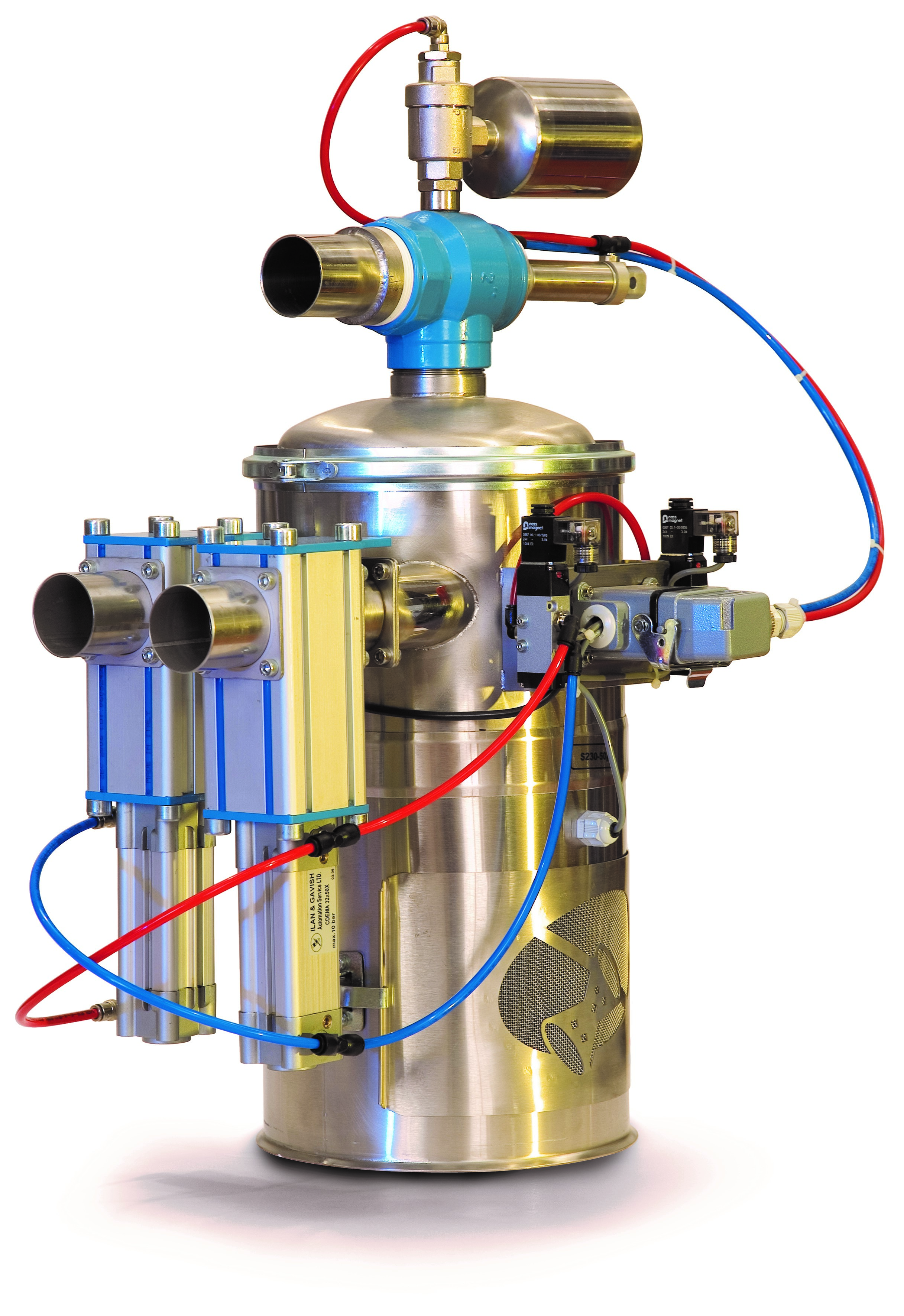

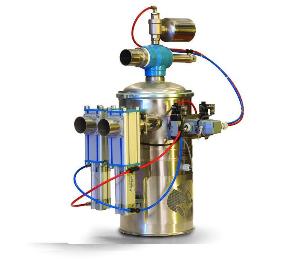

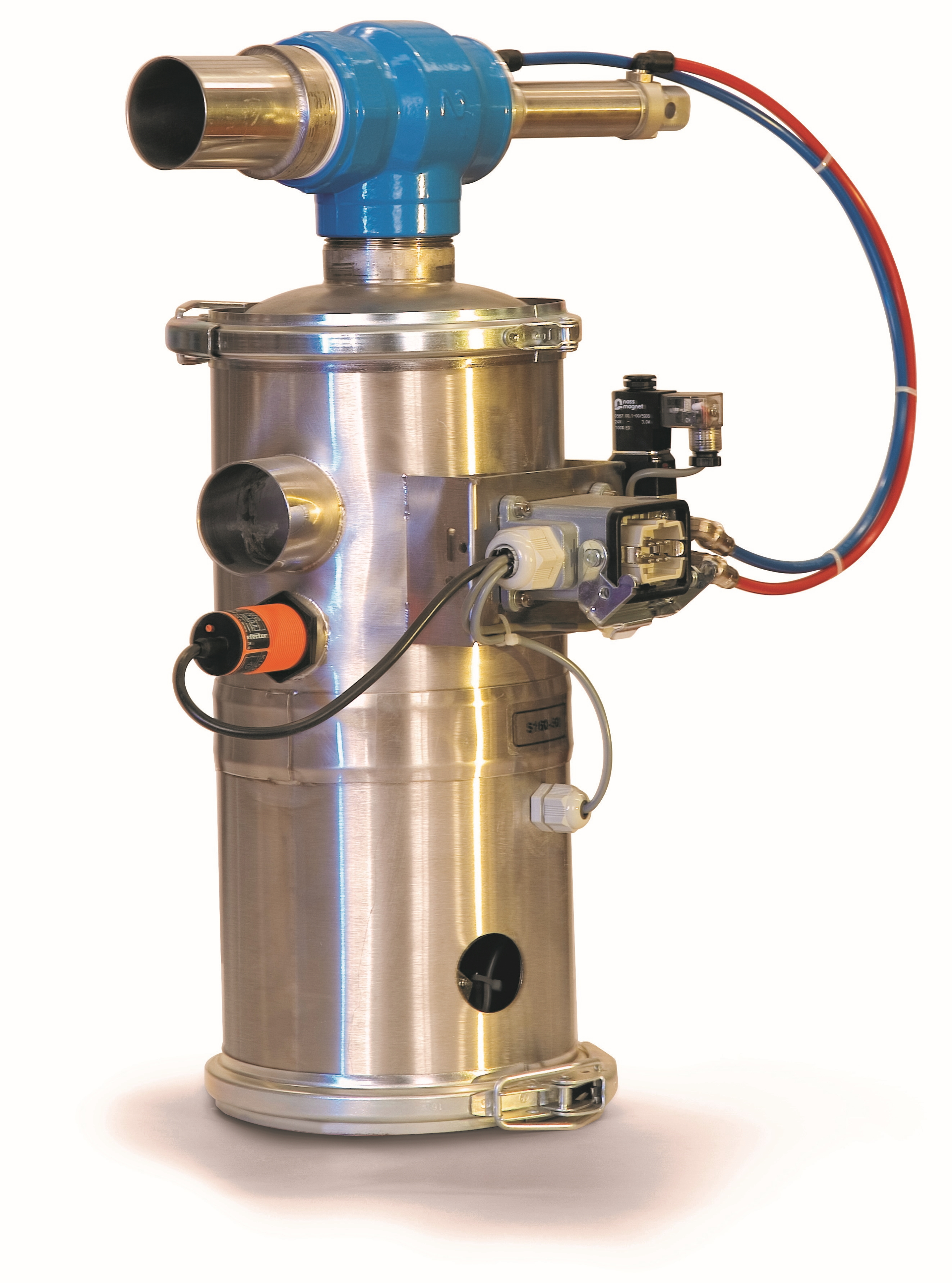

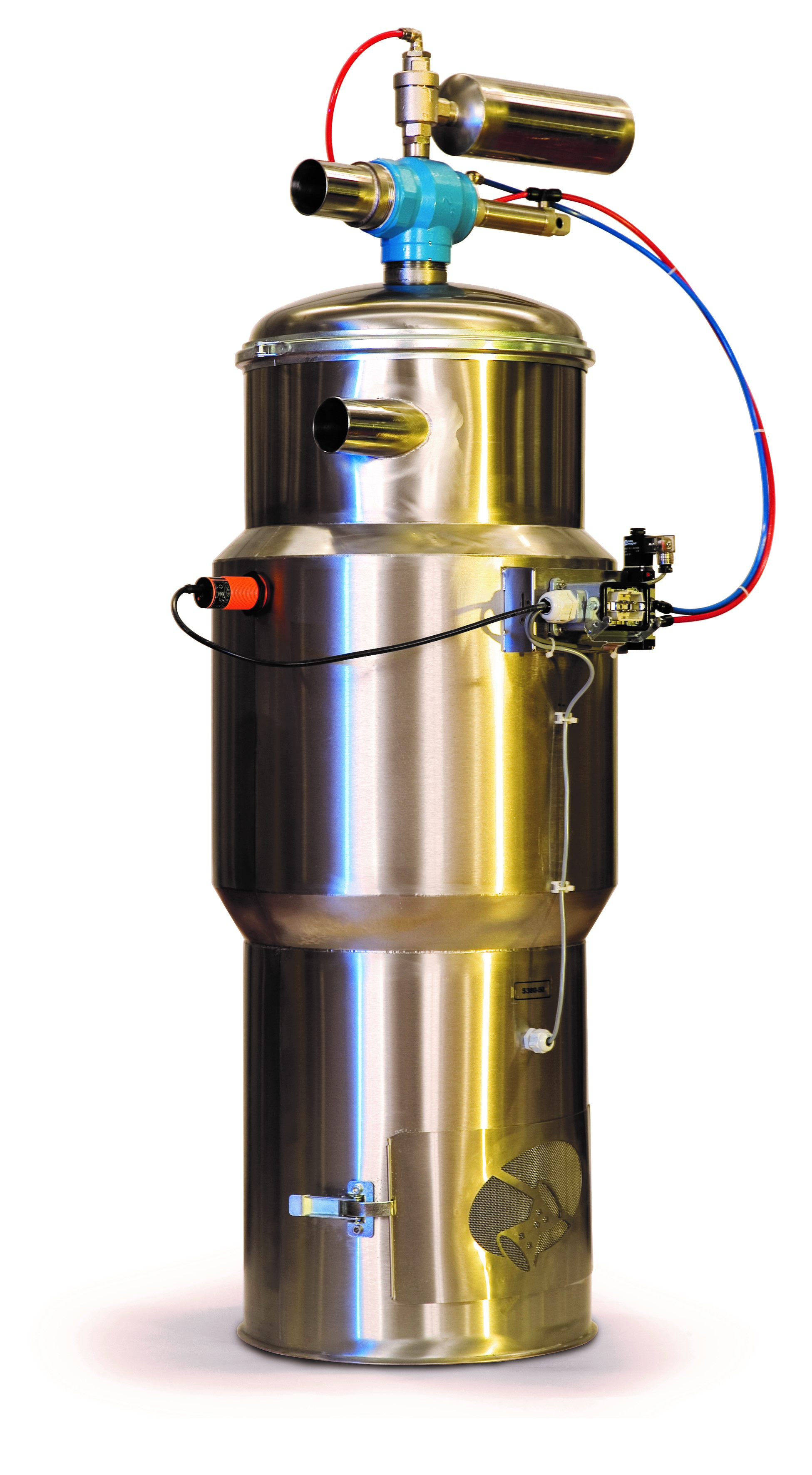

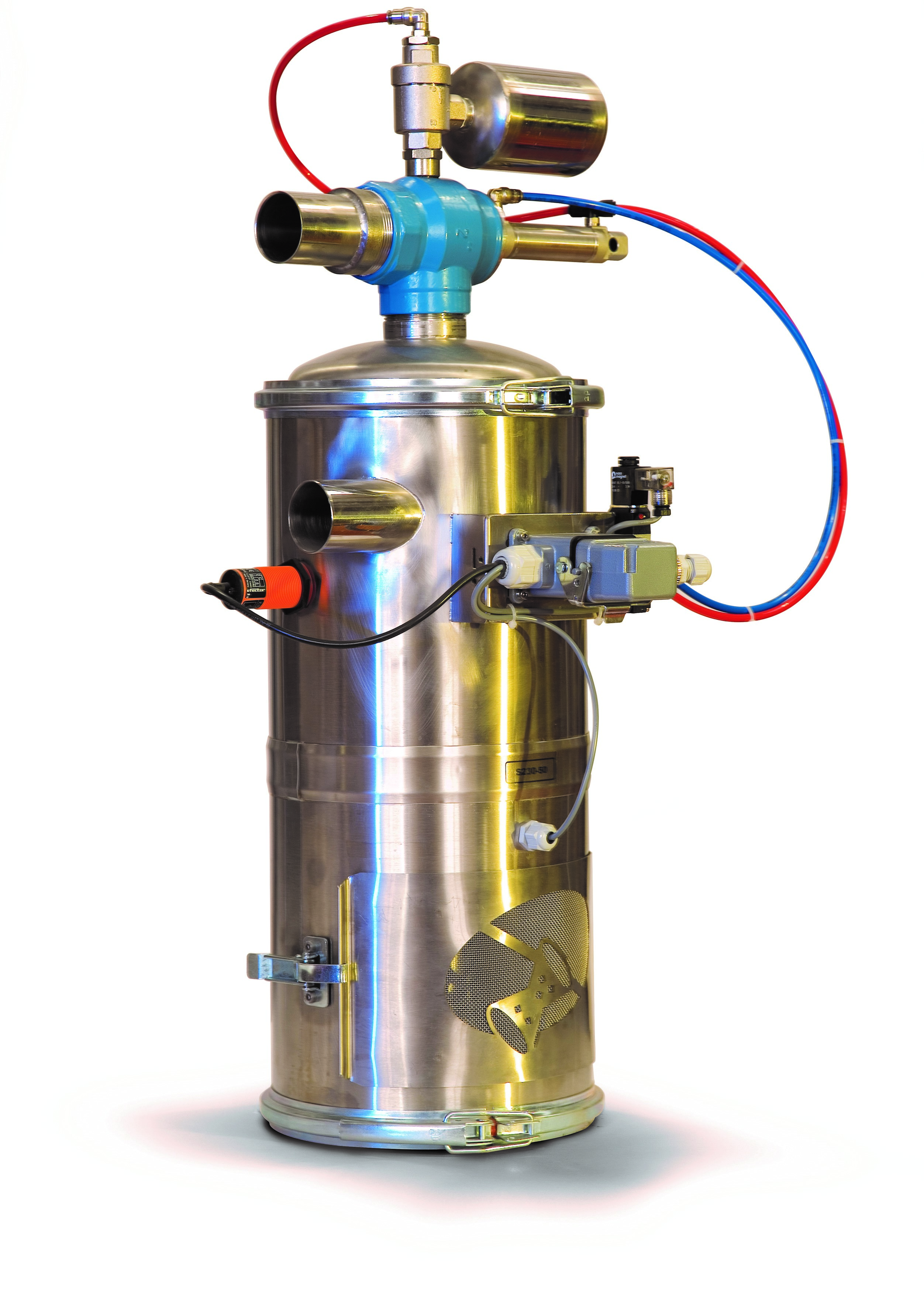

The Sysmetric S series hopper loaders are made of stainless steel and provide capacities of up to 40 liters.
Products
Plastics Material Handling
Products Plastics Material Handling Hopper Loaders
Benefits
- Made of 304 Stainless Steel
- Size range from 2 to 40 liters
- For granules and powders
- Material inlet pipe 50, 60, 63 or 76mm
- Automatic pendulum flap with magnetic sensor
- Non-return flap on the material inlet pipe
Features
- Material level proximity sensor
- Optional dust filter with automatic cleaning for powder conveying
- Optional automatic “Blow-Back” for self cleaning
- Optional proportional-valve
- Optional multi directional hinged lid
Specifications
- S160: Granules Capacity – 1.5l
- S230: Granules Capacity – 7l
- S300: Granules Capacity – 14l
- S300H: Granules Capacity – 28l, Powder Capacity 14l
- S380: Granules Capacity – 40l, Powder Capacity 25l
